ADMET offers a complete range of materials testing machines for tension, compression, bend, peel, torsion, biaxial, and dynamic fatigue testing. Our engineering team has meticulously designed frames that are compact, low-maintenance, easy to install and use, and exceed all ASTM and ISO accuracy standards.

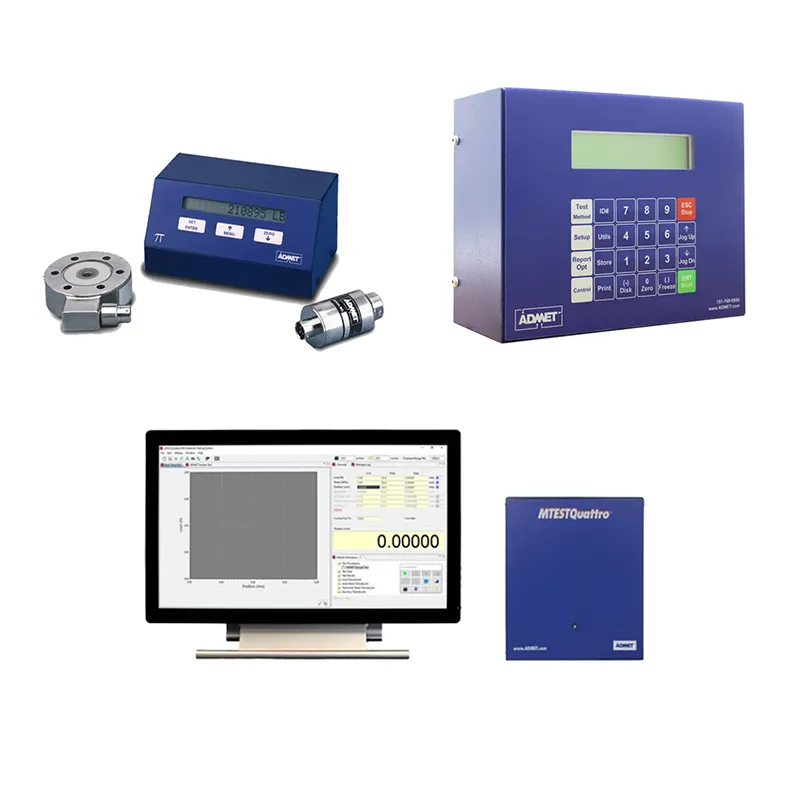

Once you have found a materials testing machine that meets your needs, complete your system by pairing it with a testing controller that satisfies your data analysis and reporting requirements, a fixture(s) that will securely hold your specimen, and if needed, a temperature chamber or bath.

If you do not find a system that satisfies all of your requirements, please contact us and we will work with you to design one that does.

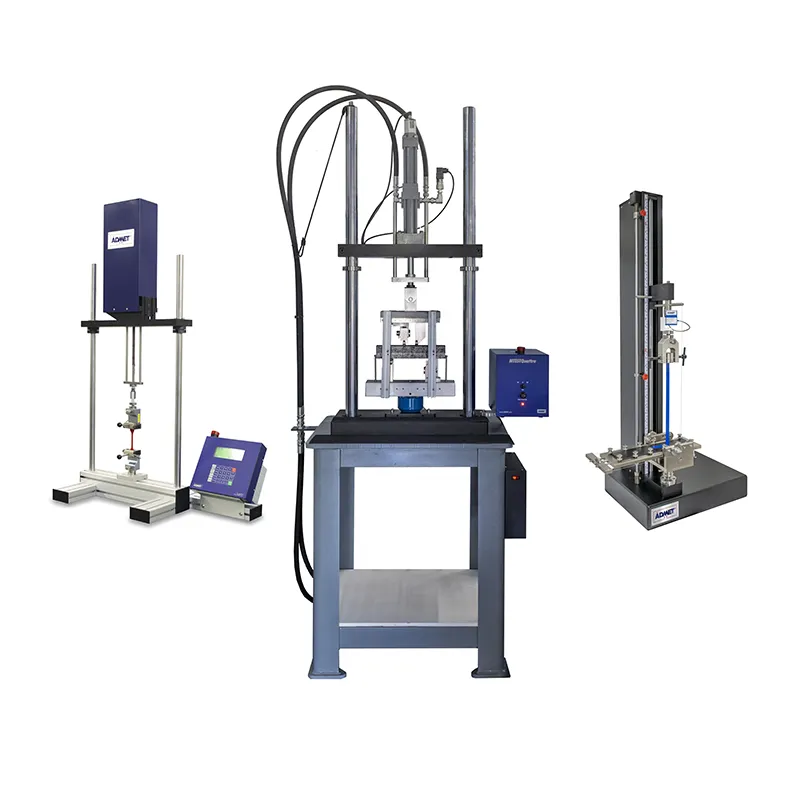

eXpert 1000 Servo-hydraulic Testing System

The eXpert 1000 Series servo hydraulic testing machines are ideal for testing metals, composites, medical devices and implants, concrete, webbing, and other materials at very high load capacities without breaking your budget. Each frame employs strain gage load cells for direct measurement of force. No need to compensate for piston friction and other non-linearities, these frames offer exceptional accuracy and precision while reducing long-term calibration and service costs.
  • Up to 600kN; Static and Dynamic Fatigue Tests to 15 Hz
  • Simple, low maintenance design
  • Perform tension, compression, peel, and bend tests
  • Exceeds ASTM and ISO accuracy standards

More Information

eXpert 2600 Dual Column Testing System

The eXpert 2600 series universal testing machines are available in table top or floor standing configurations from 2kN to 200kN. The 2600 series testers tackle the toughest tests with their superior axial alignment, stiffness, and crosshead guidance. A simple design allows for lower cost, faster delivery, and years of maintenance free operation.
  • Table-Top units available in vertical or horizontal orientations
  • Speed up to 20 Hz
  • Capacity (kN): 5, 10, 25, 50, 100, 150 , 200
  • Capacity (lbf): 1k, 2k, 5k, 10k, 20k, 30k, 40k, 50k

More Information

Featured Configurations:

eXpert 5000 Modular Testing System

The eXpert 5000 series testing machines feature configurable frame components and a detachable actuator; giving you the ability to configure your system in a variety of vertical or horizontal orientations. Perfect for users wanting to perform a variety of tests on a single machine, the 5000 is ADMET's most affordable testing system.
  • Detachable actuator
  • Vertical and horizontal orientations, single or dual column
  • Perform tension, compression, peel and bend tests
  • Exceeds ASTM and ISO accuracy standards

More Information

Featured Configurations:

eXpert 7600 Single Column Testing System

The eXpert 7600 series single column testing machines are capable of performing tension, compression, flexure and peel/adhesion tests in an affordable and compact package. Efficient in design, units fit within a 431x520mm space with force capacities to 5kN. The eXpert 7600 series machines feature the industry's largest vertical test space, making them ideal for testing high elongation materials.
  • Compact table-top design
  • Perform tension, compression, peel and bend tests
  • Test high elongation materials
  • Exceeds ASTM and ISO accuracy standards

More Information

Featured Configurations:

eXpert 4000 MicroTest Systems

The eXpert 4000 is a full featured miniature testing machine that fits in the palm of your hand. Perform tension, compression and bend tests at capacities up to 5kN (1,125 lb). Each unit employs standard components but is engineered to meet your exact testing requirements. The eXpert 4000 features opposing moving crossheads which means the center of the specimen never moves; a necessary feature when the eXpert 4000 is used with a microscope for measuring the strain properties of materials.
  • Miniature design, fits in the palm of your hand
  • Adaptable to microscope stages
  • Perform tension, compression and bend tests
  • Capacities up to 5kN; Capable of milligram low force testing
  • Speeds up to 500 mm/min

More Information

eXpert 9000 Torsion Testing System

ADMET eXpert 9000 torsion testers employ a linear slide design for maximum torsional stiffness and minimal axial friction. A reaction torque transducer is attached to a movable tail stock mounted on a linear slide. The tail stock can be left free floating or clamped during testing. All torsion testers feature unlimited rotation in both directions and are ordered as either horizontal or vertical testers. We will also modify a tester to meet your needs.
  • Table-Top units available in vertical or horizontal orientations
  • Speed up to 20 Hz
  • Capacity: 5Nm - 300Nm (static), 5Nm - 25Nm (Fatigue)

More Information

BioTense Bioreactor

The BioTense Perfusion Bioreactor is a next generation instrument to help tissue engineers and cell biologists perform high resolution investigation in mechanobiology. Unique to the BioTense is its ability to apply uniaxial mechanical stimulation and directly observe cell/matrix interaction at high magnification over long periods of time. BioTense is a self-contained instrument capable of applying uniaxial forces to 7N and elongations of 25mm. The Bioreactor sits a top the XYZ stage of an inverted microscope.
  • Enables cells to proliferate and differentiate over long periods of time
  • Maintains desired concentrations of nutrients through a perfusion process
  • Exposes tissues to uniaxial force and strain fields
  • Provides a window to directly observe cellular activity at high magnification
  • Accurately controls reactor temperature
  • Minimizes dead space volume with an adjustable height chamber

More Information

Biaxial Testing Systems

Ideal for simulating real-world conditions, ADMET offers both planar biaxial and axial-torsion test systems. Static axial-torsion test systems are offered by adding a torsion actuator to one of our standard single or dual column universal testing machines; providing you the flexibility to perform axial-torsion, uniaxial, and torsion-only tests with one machine. ADMET also offers a dynamic fatigue axial-torsion tester capable of performing tests to 15 Hz. ADMET's planar biaxial test systems are engineered to your sample size, elongation, and test speed and force specifications. Due to the difficulty in gripping many of the sample materials, we engineer special grips, fixtures and jigs to ensure samples are properly loaded in the machine.
  • Tension/compression + torsion, or Planar Biaxial
  • Quiet, compact and low maintenance
  • Exceeds ASTM and ISO accuracy standards

More Information

Fatigue Testing Systems

The eXpert 3910, 3930 and 5950 series table top dynamic testing machines are compact, quiet, and clean electro-dynamic testing systems for determining the durability of materials and components in tension, compression or flexure. eXpert 9900 series machines are ADMET's line of electro-dynamic torsion fatigue testing systems.  All dynamic fatigue testing systems are equipped with the MTESTQuattro high-speed closed-loop controller.
  • Compact, low maintenance designs
  • Electromechanical or servo hydraulic
  • Exceed ASTM and ISO requirements

More Information
